ANH2(X) AnyNET-I/O High Speed Counter Networked I/O

  • Rotation Slide

    LEGACY PRODUCT

    This is a legacy product. While it is available at this time, please note that we anticipate phasing it out (retiring) it by the end of 2023. If you have any questions, or would like assistance seeking an alternative solution, please contact our sales department.

    CONTACT SALES

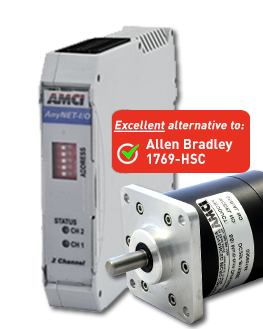

  • Excellent Alternative to
    Allen Bradley 1769-HSC
  • (2) Channel High Speed Counter
  • 4MHz Counting Rate (Ultra Fast)
  • Capture & Gate Modes
  • Each Channel Configurable as Linear or Ring counter
  • (4) Physical DC Outputs Available
  • (4) Virtual Outputs Available
  • (16) Limit Switch Setpoint Pairs
  • download-icon.jpg
     Downloads

    ANH2(X) user manual

    EtherNet configuration software



    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Description

    ANH2(X) AnyNET-I/O High Speed Counter Networked I/O

    The ANH2(X) is an expansion to the AnyNET-I/O product line from AMCI. The concept of this product line is simple: specialty and/or high speed I/O that can be attached to any popular industrial network; hence the name AnyNET-I/O.

    AnyNET-I/O is designed for a broad range of applications, from small machines with a single control enclosure, to large machines that use distributed I/O extensively to minimize wiring costs.

    What makes the AnyNET-I/O line different is that modules are available with or without a network interface. Eliminating the need for a separate networking module lowers the total cost of ownership for all applications, but especially for the cost sensitive small machines that only require one or two sophisticated functions.

    Like many modern controllers, AnyNET-I/O modules are designed to be DIN rail mounted. Up to six AnyNET-I/O modules can be stacked together and accessed over a single network interface. “Stacking” is accomplished through a small backplane connector that snaps into the DIN rail before the AnyNET-I/O modules are installed. These connectors allow the AnyNET-I/O modules to communicate with each other. To the network, the stack of modules appear as one continuous block of I/O words. The logical position within the stack is determined by a DIP switch setting on the front of the module.

    The ANH2(X) is the first high speed counter / encoder module for the AnyNET-I/O product line. The module offers two counter channels.

    Available Versions

    ANH2(X): X = network interface
    ANH2E: (EtherNet IP & Modbus TCP/IP)
    ANH2P: (Profibus)
    Price | $750/ea

    Expansion module
    ANH2: no network interface
    Price | $695/ea

    Note: Pricing is US Domestic only




    Consult the factory for availability

    Contact Sales

    ANH2(X) Features

    • (2) Channel High Speed Counter
    • 4MHz Counting Rate (Ultra Fast)
    • Capture & Gate Modes
    • Each Channel Configurable as Linear or Ring counter
    • (4) Physical DC Outputs Available
    • (4) Virtual Outputs Available
    • (16) Limit Switch Setpoint Pairs


    PLC-Based Specialty I/O Solutions

    AMCI’s AnyNET-I/O family is a distributed I/O system that combines hard to find specialty functions with a network interface, simplifying installation and cutting costs. The product family allows users to “mix & match” functions, including stepper motion
    control and a variety of sensor interfaces, in a single solution.

    AnyNET-I/O is compatible with any networked PLC/PAC and easily programs through the host PLC’s software.  Its innovative product design simplifies installation, optimizes network performance, and ensures system integrity.

    Multple High Speed Counters: (1) ANH2(X) + (5) ANH2 shown below
    The ANH2(X) easily expands from a 2-to-12 channel high speed counter by stacking additional modules alongside the “gateway”, and it only requires a single network connection for all communication. This innovative product design simplifies installation, optimizes network performance, and ensures system integrity. Please see the diagram below for details.

    Compatible Networks


    AnyNET-I/O is compatible with any networked PLC


    The Best PLC Integration Available

    AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!

    Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.

    Program Using Your Existing Software


    AMCI's products program using your PLC's native software - nothing new to learn or buy!

    Specifications

    Product Specifications

    AMCI ModuleANH2(X)
    Network Availability-ANH2E (EtherNet/IP and Modbus TCP)
    -ANH2P (Profibus)
    Position sensorIncremental encoder, pulse counter
    Number of counters(2)
    Position range±2,147,483,647
    Number of I/O
    D=Direct
    B=Backplane
    RB=Relay Board
    D=2 in/ 4 out
    B=0 on/ 4 out
    RB = na
    Throughput time20 us maximum
    Counting modes-Count on A, direction control on B
    -Count on A, direction control on internal bit
    -Increment on A, Decrement on B
    -Quadrature Encoder on A, B
    Position capture-Capture/Continue
    -Capture/Preset/Continue
    -Capture/Hold/Resume
    -Capture/Preset/Hold/Resume

    Included connectors

    AMCI Part NumberDescription
    MS-2x11I/O connector
    MS-4MPower connector
    IC-5Interconnecting stack connector

    Video



    AnyNET Specialty I/O: PLC-Based Specialty I/O Solutions

    AMCI’s AnyNET I/O family is a distributed I/O system that combines hard to find specialty functions with a network interface, simplifying installation and cutting costs.

    Duration 01:25

    Accessories

    DC25 Incremental Encoder

    DC25 Incremental Encoder Learn More

    Cables

    Cables Learn More

    AMCI makes buying PLC-based automation easy...our sales group will help you:

    • Select the right product for your application
    • Pay by credit card using your Visa, Mastercard, Discover, or American Express
    • Coordinate alternative payment methods (P.O., wire transfers, etc.)
    • Locate a distributor convenient to your region of the country

    credit cards accepted lineup.png
    Contact AMCI Sales today:

    860-585-1254

    CONTACT SALES

    Ordering Information

    AMCI's sales team takes the hassle out of placing your order. We'll advise on product selection, alternatives, lead times, and present you with point of purchase options. Call (860) 585-1254 or email AMCI sales today!

    Down Arrow

    Create Your Part Number

    Generate your ANH2(X) AnyNET-I/O High Speed Counter Networked I/O part number by using this helpful ordering guide. Starting from left to right, use the following diagram and table to choose the desired options.

    Part Number Guide

    Part Number CharacterANH2(X) AnyNET-I/O High Speed Counter Networked I/O
    Optional Network:E = EtherNet IP & Modbus TCP/IP
    P = Profibus
    (leave blank for expansion module)
