7272 ControlLogix EnDat Interface Module
Description

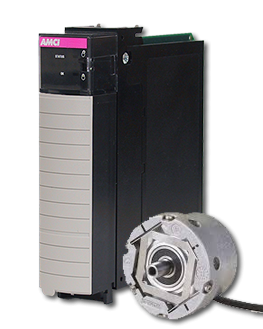

7272 ControlLogix EnDat Interface Module
Digital drive systems and feedback loops with position encoders for measured value acquisition require fast data transfer with high transmission reliability from the encoders. Further data, such as drive-specific parameters, compensation tables, etc. must also be made available. For high system reliability, the encoders must be integrated in routines for error detection and have diagnostic capabilities. Now adding this technology to your ControlLogix PLC is simple thanks to AMCI's 7272 (2) channel EnDat interface module.
The AMCI 7272 PLC module for ControlLogix was developed for applications requiring a direct interface to encoders that output EnDat data. Plus this card incorporates Allen-Bradley licensed technology for guaranteed compatibility with A-B Series 1756 I/O chassis.
The ControlLogix EnDat interface module from AMCI is a digital, bidirectional interface for encoders. It is capable both of transmitting position values
from incremental and absolute encoders as well as transmitting or updating information stored in the encoder, or saving new information. This module is capable of connecting up to two independent EnDat output encoders/sensors with max 48-bit resolution for position. This module also has two latching inputs, one for each channel, which can be used to capture the sensor’s data.
Available Versions
7272: Two-channel EnDat interface plug-in module for the Allen-Bradley ControlLogix.
Price | $2,125/ea
Note: Pricing is US Domestic only
Consult the factory for availability
Contact SalesLicensed By Allen-Bradley
All AMCI plug-in module products for Allen-Bradley PLCs or PACs are approved for sale by Rockwell Automation and utilize licensed technology to ensure trouble-free performance.
Advanced Micro Controls Inc. (AMCI) is a global Encompass member of the Rockwell Automation PartnerNetwork™ program. Through collaboration with Rockwell Automation, AMCI helps its customers improve time to market, lower total cost of ownership, better manage assets and minimize manufacturing business risk.
Encompass Product Partner since 1992
AMCI is a founding member of Rockwell Automation's Encompass Product Partner program.
The Best PLC Integration Available
AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!
Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.
Program Using Your Existing Software
AMCI's products program using your PLC's native software - nothing new to learn or buy!
Specifications
Product Specifications
| AMCI Module | 7272 |
|---|---|
| PLC platform | 1756 ControlLogix |
| Encoder output type | EnDat 2.1 |
| Maximum Resolution | 48 bit |
| Maximum resolution | 48 bit |
| Number of channels | (2) channels opto-isolated |
| Number of I/O | 2 in direct (used for capturing scaled position data) opto-isolated |
| I/O isolation | 500 Vac |
| Read/write encoder parameters | Yes |
| Encoder parameter access | Parameters of the manufactuer, parameters of the OEM, operatign parameters & status |
| Encoder calculation time | 5us - 12ms |
| Command set | Absolute position value, R/W parameters, Reset |
| Temperature range | Operating: 32° to 131°F (°0 to 55°C) Storage: 0° to 150°F (-17° to 65°C) |
| DC supply requirements | 400ma @ 5Vdc from PLC backplane |
| Cable requirements | sensor dependent |
| Required hardware | external 24V power supply for sensor and latch inputs |
| Optional hardware | na |
Product Specifications
AMCI Module7272
PLC platform1756 ControlLogix
Encoder output typeEnDat 2.1
Maximum Resolution48 bit
Maximum resolution48 bit
Number of channels(2) channels opto-isolated
Number of I/O2 in direct (used for capturing scaled position data) opto-isolated
I/O isolation500 Vac
Read/write encoder parametersYes
Encoder parameter accessParameters of the manufactuer, parameters of the OEM, operatign parameters & status
Encoder calculation time5us - 12ms
Command setAbsolute position value, R/W parameters, Reset
Temperature rangeOperating: 32° to 131°F (°0 to 55°C)
Storage: 0° to 150°F (-17° to 65°C)
Storage: 0° to 150°F (-17° to 65°C)
DC supply requirements400ma @ 5Vdc from PLC backplane
Cable requirementssensor dependent
Required hardwareexternal 24V power supply for sensor and latch inputs
Optional hardwarena
