NX2C4 NEXUS LDT Interface

NX2C4 NEXUS LDT Interface
  • 4 channel LDT interface
  • Choose ControlNet, DeviceNet, EtherNet IP, Modbus TCP/IP, Profinet, or Profibus
  • Compatible with Balluf / MTS / Ametek / Turck linear displacement transducer sensors with start - stop or pwm digital outputs
  •  download-icon.jpg
     Downloads

    User Manuals

    NX2C4 product manual

    Sample Programs

    NX2C4C sample programs

    Configuration Files

    NX2C4C eds files
    NX2C4C-08 eds files

    Description

    NX2C4_ NEXUS Networked I/O LDT Interface

    AMCI offers a variety of network interfaces and controllers for industrial control applications.

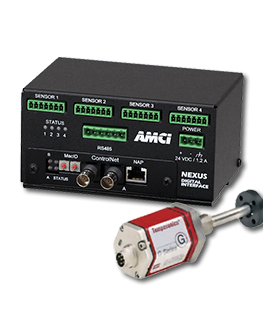

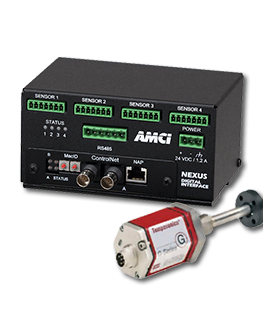

    The NEXUS four channel LDT interface provides absolute position and velocity data directly through a network connection. The four LDT channels can be configured to accept sensors that output either start/stop or PWM signals. By selecting a special software option, the NX2C4_-08 can interface to multiple magnet sensors (up to 16 magnets per sensor), a necessity in metal slitting, paper, and lumber applications.

    The maximum position resolution of the NX2C4_ LDT interface is 0.001". The position data is updated every 2ms and the velocity update is selectable for either 24ms or 160ms. The NX2C4_ provides complete diagnostic information for both the sensor and controller including transducer and module errors.

    Available Versions

    NX2C4_: Four-channel LDT interface with network connection
    Price | $2,168/ea

    Note: Pricing is US Domestic only




    Save

    Consult the factory for availability

    Contact Sales

    NX2C4_ Features

    • 4 channel LDT interface
    • Choose ControlNet, DeviceNet, EtherNet IP, Modbus TCP/IP, Profinet, or Profibus
    • Compatible with Balluf / MTS / Ametek / Turck linear displacement transducer sensors with start - stop or pwm digital outputs


    Save

    PLC-Based Specialty I/O Solutions

    Functionally, the AMCI NEXUS controllers and interfaces deliver the same level of PLC integration as their plug-in module counterparts, but with much more flexibility from a systems standpoint. Rather than limit these versatile products to one PLC brand or specific backplane, all units are Din-rail mountable and equipped with a network interface that allows connection to various controllers. AMCI NEXUS specialty I/O integrate with ANY network enabled PLC using Ethernet I/P, Modbus TCP/IP, Profinet, Profibus, ControlNet, or DeviceNet.

    The flexibility of a NEXUS controls solution saves time and money, letting customers choose whatever PLC best meets their needs, or change PLCs without having to re-specify and repurchase plug-in modules. And because the NEXUS integrates via network communication, PLC platforms no longer restrict compatibility and integration.

    Compatible Networks


    NEXUS is compatible with any networked PLC

    Save

    Save


    Save

    Save

    The Best PLC Integration Available

    AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!

    Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.

    Program Using Your Existing Software


    AMCI's products program using your PLC's native software - nothing new to learn or buy!

    Specifications

    Product Specifications

    AMCI ModuleNX2C4_NX2C4_-08
    Network AvailabilityNX2C4A (Profinet)
    NX2C4C (ControlNet)
    NX2C4D (DeviceNet)
    NX2C4E (Ethernet IP)
    NX2C4P (Profibus)
    NX2C4T (Modbus TCP/IP)
    NX2C4C (ControlNet)
    NX2C4E (Ethernet IP)
    NX2C4T (Modbus TCP/IP)
    Position sensorLDT
    Maximum resolution0.001"
    Number of channels(4)
    Transducer compatibilityBalluff / MTS / Ametek / Turck
    --------------------------------
    above brands w/ start - stop or pwm digital outputs
    Velocity update time24ms or 160ms selectablena
    DC supply requirements500 mA @ 24Vdc
    Cable requirementssensor dependent
    Required hardwareexternal power supply for sensor if it does not operate on 24Vdc
    Optional hardwarena
    Sensor input connectors (4 per unit)AMCI Part # = MS-7P
    Phoenix Contact Part # = MC1,5/7-ST-3,81
    Four Connectors are included with the unit
    nexus ldt interface connector drawing
    Caution: The +24Vdc output pin (#6) is directly connected to the +24Vdc pin on the Power Connector.
