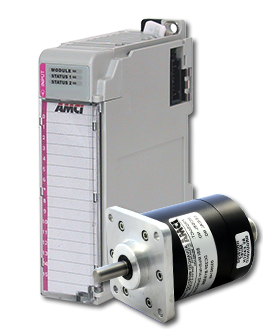

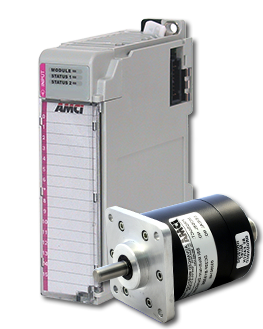

7662 MicroLogix SSI Interface Module

7662 MicroLogix SSI Interface Module
  • Two-channel SSI interface
  • Direct interface to most sensors that output SSI
  • Onboard diagnostics monitor and report errors
  • Compatible with leading SSI sensors
  • Onboard fault diagnostics that constantly monitor system integrity and report errors
  • download-icon.jpg
     Downloads

    7662 user manual

    7662 sample programs

    7662 eds files



    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Description

    7662 MicroLogix SSI Interface Module

    AMCI developed the the 7662 module for applications requiring a direct interface to most sensors that output SSI data. The resolution of the MicroLogix SSI interface module is only limited by the resolution of the position sensor used.

    The AMCI 7662 SSI interface module can be used with most Temposonics and Balluff linear sensors (LDT) when configured with the SSI output. This provides higher resolution and faster throughput than traditional start-stop or PWM style sensors.

    Additional features include: position preset, count direction, position scaling, and latch inputs that are used to capture the scaled position data. This module also incorporates fault diagnostics that constantly monitor system integrity and report any errors to the PLC.

    Available Versions

    7662: Two-channel SSI interface plug-in module for the Allen-Bradley MicroLogix
    Price | $732/ea

    Note: Pricing is US Domestic only


    Save

    Consult the factory for availability

    Contact Sales

    Licensed By Allen-Bradley

    All AMCI plug-in module products for Allen-Bradley PLCs or PACs are approved for sale by Rockwell Automation and utilize licensed technology to ensure trouble-free performance.

    Advanced Micro Controls Inc. (AMCI) is a global Encompass member of the Rockwell Automation PartnerNetwork™ program. Through collaboration with Rockwell Automation, AMCI helps its customers improve time to market, lower total cost of ownership, better manage assets and minimize manufacturing business risk.

    Encompass Product Partner since 1992

    rockwell-automation-encompass-program-amci-logo.gifAMCI is a founding member of Rockwell Automation's Encompass Product Partner program.


    The Best PLC Integration Available

    AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!

    Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.

    Program Using Your Existing Software


    AMCI's products program using your PLC's native software - nothing new to learn or buy!

    Specifications

    Product Specifications

    AMCI Module7662
    PLC platform1764 MicroLogix
    Number of channels(2)
    Position sensorSSI
    Maximum resolutionTransducer dependent
    Number of I/O
    D = Direct
    B = Backplane
    RB = Relay Board
    2 in direct
    na
    na
    Transducer compatibilityAMCI: DC25 SSI | AMCI: ME15 SSI
    Others: Balluff / MTS / SICK / Stegmann / Allen-Bradley
    Laser sensor compatibilityLeuze AMS200 optical laser measurement system
    Optical barcode position systemLeuze BPS37 optical barcode positioning system
    Velocity update time160ms or 24ms
    DC supply requirements375ma @ 5Vdc
    Cable requirementsSensor dependent
    Required hardwareExternal power supply for sensor and latch inputs
    Optional hardwarena
