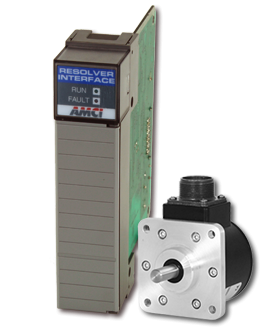

1500 Series SLC500 Resolver Interface Module

1500 Series SLC500 Resolver Interface Module
  • Choose 1 or 2 channel resolver interface
  • Available in single or multi-turn configurations
  • Supplies position, tachometer, and fault data
  • Industry leading warranty and support
  • 100% compatible with entire line of AMCI brushless resolvers and resolver transducers
  • Description

    1500 Series Resolver Interface

    Available with one or two resolver inputs, these interface modules supply absolute position, tachometer, and fault diagnostic data for single and multi-turn applications. Fully programmable from the SLC processor, these resolver interface modules offer position resolutions of up to 8,192 counts per turn for single turn applications or 4,096 counts per turn over a maximum of 180 turns for multi-turn applications.

    With tens of thousands of modules in use today, product reliability and loyalty are unparalleled.

    Available Versions

    1531: Single-channel resolver interface plug-in module for the Allen-Bradley SLC500
    Price | $1,173/ea

    1532: Two-channel resolver interface plug-in module for the Allen-Bradley SLC500
    Price | $1,450/ea

    1541: Single-channel resolver interface plug-in module for the Allen-Bradley SLC500
    Price | $1,450/ea

    1542: Two-channel resolver interface plug-in module for the Allen-Bradley SLC500
    Price | $1,730/ea

    1561: Single-channel resolver interface plug-in module for the Allen-Bradley SLC500
    Price | $1,509/ea

    Note: Pricing is US Domestic only


    Save

    Consult the factory for availability

    Contact Sales

    Licensed By Allen-Bradley

    All AMCI plug-in module products for Allen-Bradley PLCs or PACs are approved for sale by Rockwell Automation and utilize licensed technology to ensure trouble-free performance.

    Advanced Micro Controls Inc. (AMCI) is a global Encompass member of the Rockwell Automation PartnerNetwork™ program. Through collaboration with Rockwell Automation, AMCI helps its customers improve time to market, lower total cost of ownership, better manage assets and minimize manufacturing business risk.

    Encompass Product Partner since 1992

    rockwell-automation-encompass-program-amci-logo.gifAMCI is a founding member of Rockwell Automation's Encompass Product Partner program.


    The Best PLC Integration Available

    AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!

    Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.

    Program Using Your Existing Software


    AMCI's products program using your PLC's native software - nothing new to learn or buy!

    Specifications

    Product Specifications

    AMCI Module15311532154115421561
    PLC platformSLC500SLC500SLC500SLC500SLC500
    Number of channels(1) channel(2) channels(1) channel(2) channels(1) channel
    Max. full scale count1024102481928192737,280
    Position Update Time200us400us200us400us400us
    Tachometer Update Time32ms or 120ms32ms or 120ms32ms or 120ms32ms or 120ms32ms
    Tachometer resolution1 RPM1 RPM1 RPM1 RPM1 RPM
    DC supply requirements95 mA max. @ 5Vdc
    55 mA max. @ 24Vdc
    95 mA @ 5Vdc
    55 mA @ 24Vdc
    95 mA @ 5Vdc
    55 mA @ 24Vdc
    95 mA @ 5Vdc
    55 mA @ 24Vdc
    95 mA @ 5Vdc
    55 mA @ 24Vdc
    Transducer compatibilityH25 / HT-6 / HT-20 / HT-400 / HT-20-(x) / R11X-J10/7 H25 / HT-6 / HT-20 / HT-400 / HT-20-(x) / R11X-J10/7 H25 / HT-6 / HT-20 / HT-400 / HT-20-(x) / R11X-J10/7 H25 / HT-6 / HT-20 / HT-400 / HT-20-(x) / R11X-J10/7 HTT-20 / HTT-400 / HTT-425
    Cable requirementsCTL-XCTL-XCTL-XCTL-XCML-X
    Required hardwarenanananana
    Optional hardwarenanananana

    Accessories

    Resolver Sensors

    Resolver Sensors Learn More

    Cables

    Cables Learn More

    Reference Modules

    Reference Modules Learn More
