2611, 2612, & 2613 MicroLogix PLS Modules

2611, 2612, & 2613 MicroLogix PLS Modules
  • Cost effective PLS controller for MicroLogix.
  • Up to 32 high-speed PLS I/O (more than ever!)
  • High Speed PLS outputs: throughput at 20 microseconds.
  • Each output can be programmed with up to 16 On/Off setpoints.
  • Output repeatability, varying no more than 1us turn-over-turn.
  • Slaving, Stitching, ANDing, Speed compensation, and Timed outputs are ALL standard.
  • Functionally equivalent to ControlLogix 1756-PLS module.
  • Description

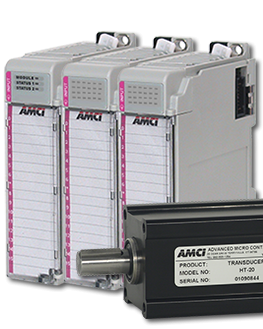

    2611, 2612, & 2613 MicroLogix PLS

    The 2600 series programmable limit switch controller module for Allen-Bradley's MicroLogix PLC is available in three different versions, the 2611, 2612, and 2613. AMCI created these three versions to satisfy a wide range of packaging and general automation applications.

    For stamping press applications customers can choose a 2611-13, 2612-13, or 2613-13 module which offers brake monitoring and die protection functionality standard.

    • 2611: (16 virtual PLS I/O)
      The 2611 PLS module combines a resolver interface and 16 virtual PLS outputs via the MicroLogix backplane.
      • 2611-13 (16 virtual PLS I/O + press options)
    • 2612: (16 virtual/8 physical hi-speed PLS I/O)
      The 2612 PLS module combines a resolver interface and 16 virtual PLS outputs, plus 8 physical hi-speed PLS I/O.
      • 2612-13 (16 virtual + 8 physical hi-speed PLS I/O + press options)
    • 2613: (16 virtual PLS I/O + 16 physical hi-speed PLS I/O)
      The 2613 PLS module combines a resolver interface and 16 virtual PLS outputs, plus 16 physical hi-speed PLS I/O.
      • 2613-13 (16 virtual + 16 physical hi-speed PLS I/O + press options)

    The 2611, 2612, and 2613 modules all have 16 virtual outputs. These outputs are programmed in the same way as the physical outputs, and are useful for the less time critical portions of your applications that can be monitored and controlled by your PLC ladder logic program.

    For example: The 2611 module is a perfect choice for users that currently wire the outputs of a Stand Alone Programmable Limit Switch into a PLC input module. The 2611 module reports the state of its outputs directly to the PLC’s input registers, eliminating both the input module and all of the additional wiring needed to connect the two together...saving time & money!

    The 2612 and 2613 modules combine the functions of the 2611 module with hi-speed physical PLS I/O that are managed onboard, enabling throughput times of 20us. Plus these hi-speed PLS I/O are wired directly into the card, eliminating the need for external relay boards and relays - more savings!

    AMCI's innovative 2600 series PLS design simplifies installation, cuts costs, and maximizes your PLC's performance when it comes to hi-speed programmable limit switch applications.

    Available Versions

    2611: (1) channel resolver interface with 16 virtual PLS outputs via the CompactLogix backplane; plug-in module for the Allen-Bradley CompactLogix
    Price | $1,385 - $1,440/ea

    2612: (1) channel resolver interface with 16 virtual PLS outputs via the CompactLogix backplane and 8 physical hi-speed I/O;plug-in module for the Allen-Bradley CompactLogix
    Price | $1,675 - 1,790/ea

    2613: (1) channel resolver interface with 16 virtual PLS outputs via the CompactLogix backplane and 16 physical hi-speed I/O; plug-in module for the Allen-Bradley CompactLogix
    Price | $1,960 - 2,065/ea

    2611: (1) channel resolver interface with 16 virtual PLS outputs via the MicroLogix backplane; plug-in module for the Allen-Bradley MicroLogix
    Price | $1,385/ea

    2612: (1) channel resolver interface with 16 virtual PLS outputs via the MicroLogix backplane and 8 physical hi-speed I/O;plug-in module for the Allen-Bradley MicroLogix
    Price | $1,675/ea

    2613: (1) channel resolver interface with 16 virtual PLS outputs via the MicroLogix backplane and 16 physical hi-speed I/O;plug-in module for the Allen-Bradley MicroLogix
    Price | $1,960/ea

    Note: Pricing is US Domestic only


    Save

    Consult the factory for availability

    Contact Sales

    Licensed By Allen-Bradley

    All AMCI plug-in module products for Allen-Bradley PLCs or PACs are approved for sale by Rockwell Automation and utilize licensed technology to ensure trouble-free performance.

    Advanced Micro Controls Inc. (AMCI) is a global Encompass member of the Rockwell Automation PartnerNetwork™ program. Through collaboration with Rockwell Automation, AMCI helps its customers improve time to market, lower total cost of ownership, better manage assets and minimize manufacturing business risk.

    Encompass Product Partner since 1992

    rockwell-automation-encompass-program-amci-logo.gifAMCI is a founding member of Rockwell Automation's Encompass Product Partner program.


    The Best PLC Integration Available

    AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!

    Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.

    Program Using Your Existing Software


    AMCI's products program using your PLC's native software - nothing new to learn or buy!

    Specifications

    Product Specifications

    AMCI Module2611 or 2611-132612 or 2612-132613 or 2613-13
    PLC platform1764 MicroLogix
    Number of channels(1)
    Position sensorresolver
    Maximum full scale count4,096
    Throughput time20us
    Backplane requirements450ma500ma550ma
    Tachometer resolution1 RPM
    5Vdc supply requirements450ma 500ma550ma
    # of I/O
    D=Direct
    B=Backplane
    na
    16 out B/16 in B
    8 in D/8 out D
    16 out B/16 in B
    16 out D /16 in D
    16 out B/16 in B
    Output Specifications
    Output Type
    Operating Range
    Current Rating Per
    Output
    Current Limit Per 2
    Backplane Isolation
    naSourcing
    10 to 30Vdc
    1A Maximum

    <4A (Overload)
    Yes
    Input Specifications
    Input Type
    Nominal Range
    On State
    Off State
    Impedance @24Vdc
    Input Current
    Backplane Isolation
    naSinking
    12 to 24Vdc
    10 to 30Vdc
    0 to 5Vdc
    3.3kOhm
    8mA @24Vdc
    Yes
    Press Automation option (-13)brake monitoring and die protection
    Resolver transducer compatibilityH25 / HT-6
    HT-20
    HT-400
    HT-20-(x)
    R11X-J10/7
    Cable requirements (maximum length - 100ft)CTL-X
    Required hardwarenaexternal DC power supply to power outputs
    Optional hardwarena

    Accessories

    Resolver Transducers

    Resolver Transducers Learn More

    Relay Boards

    Relay Boards Learn More

    Cables

    Cables Learn More
