    AMCI relay boards are available in a variety of configurations and provide connection between AMCI’s Programmable Limit Switch modules, or our purpose designed packaging and stamping press controllers, and your application’s real world inputs and outputs.

    Connections between the Controller and the relay boards are made with CRP-(x) cables, where (x) is the length in feet. Currently, two, six, and twelve foot cables are available from AMCI.

    Every output requires a solid-state relay, which are sold separately. These relays are fuse protected and have a retaining screw and indicator LED.

    All of AMCI's relay boards also require an external, isolated +24Vdc supply to drive both the inputs and the relays.

    Available Types

    (click for info/price)

    Note: Pricing is US Domestic only




    Consult the factory for availability

    Contact Sales

    Available Types



    I/O Rack System

    AMCI Part No.DescriptionDrawingsPrice
    RB-78 Output Relay Board, 3.8" x 6", needs Solid-State Relay modulesOutline Drawings:
    RB-7, RB-8, RB-9

    pdf icon
    $345
    RB-88 Output, 8 Input Relay Board, 3.8" x 10", needs S.-S. Relay modules$360
    RB-916 Output Relay Board, 3.8" x 11", needs Solid-State Relay modules$475

    Configuration Diagrams

    Click on a Relay Board Configuration below to view the diagram image

    RBRelay Board Configuration
    ARB-1 (no drawing available)

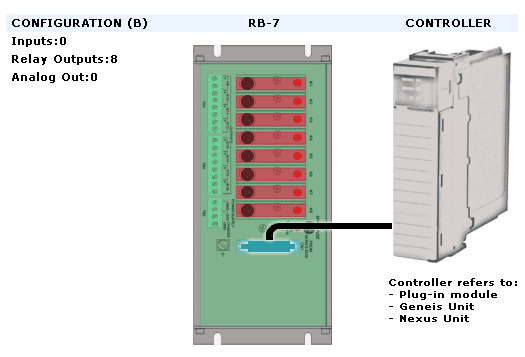

    Bimage icon RB-7

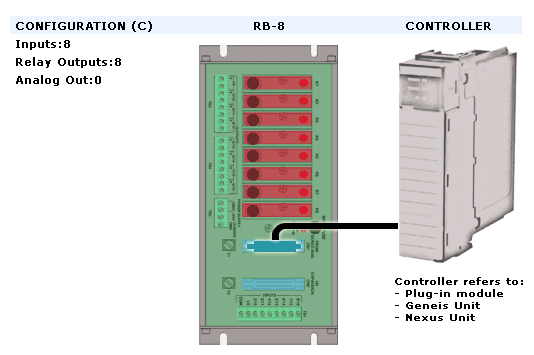

    Cimage icon RB-8

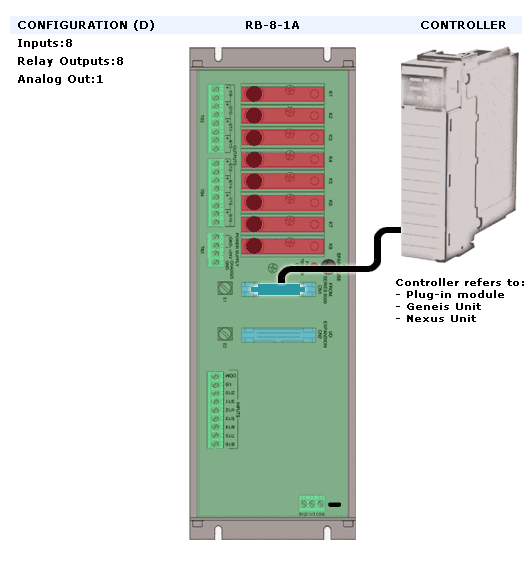

    Dimage icon RB-8-1A
    Eimage icon RB-8-2A

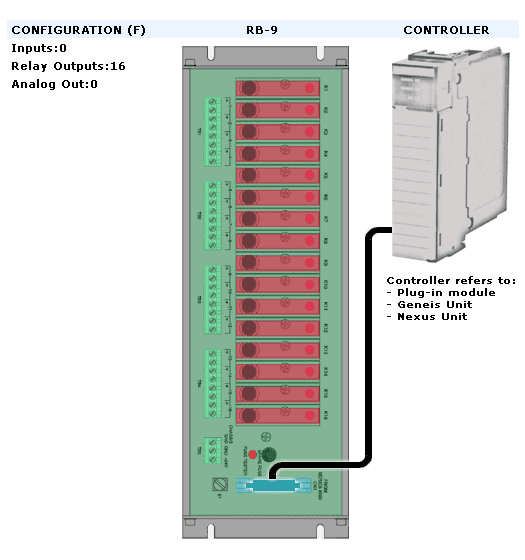

    Fimage icon RB-9

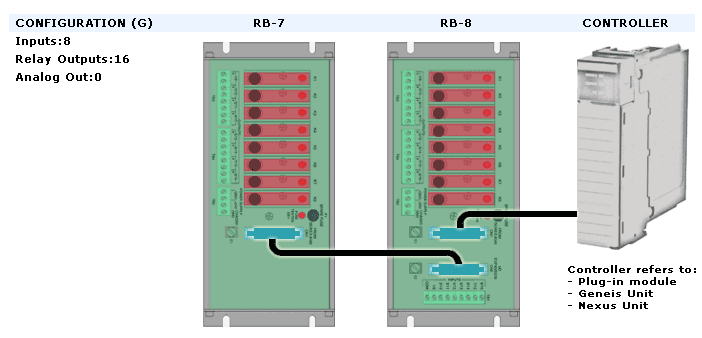

    Gimage icon RB-7 & RB-8

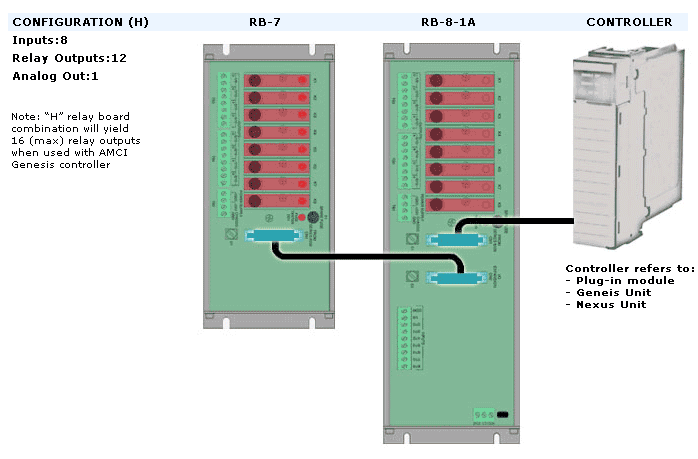

    Himage icon RB-7 & RB-8-1A

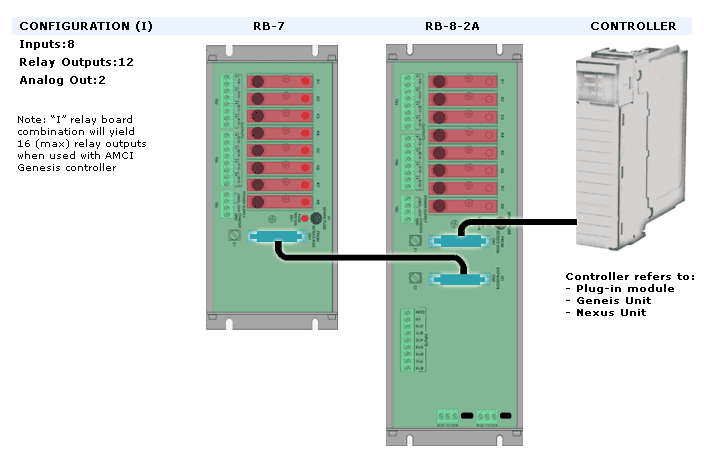

    Iimage icon RB-7 & RB-8-2A

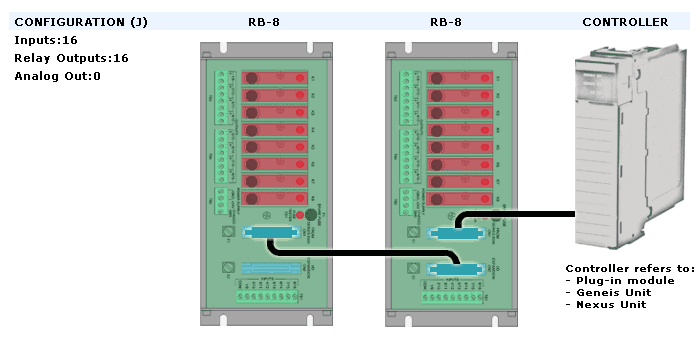

    Jimage icon RB-8 & RB-8

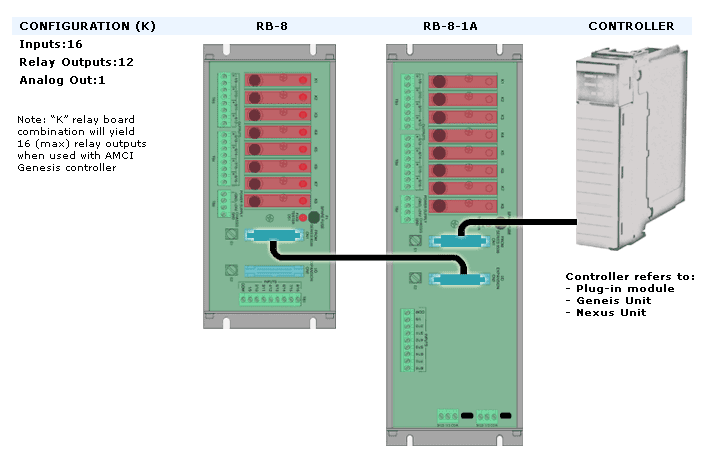

    Kimage icon RB-8 & RB-8-1A

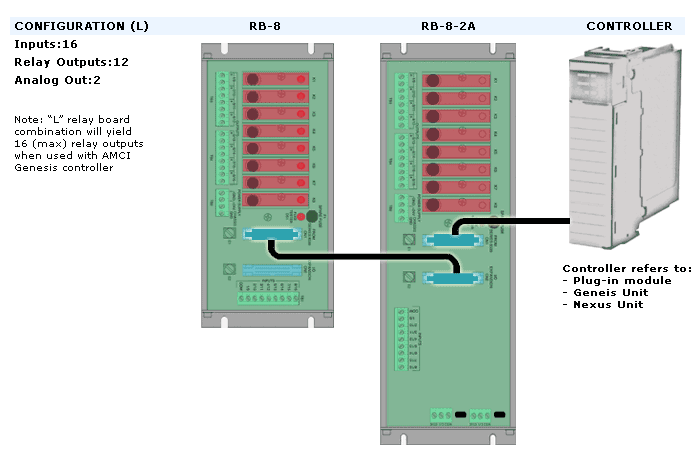

    Limage icon RB-8 & RB-8-2A



    Solid-State Relay Modules

    AMCI Part No.Output VoltageRated CurrentWhat's IncludedPrice
    KD-65-60 VDC3 AmpFuse and LED$47
    KA-3120 VAC3 AmpFuse and LED$47



    Cables

    AMCI Part No.DescriptionPrice
    CRP-22 foot ribbon cable for Relay Board I/O system$86.25
    CRP-66 foot ribbon cable for Relay Board I/O system$138.00
    CRP-1212 foot ribbon cable for Relay Board I/O system$201.25

    AMCI makes buying compatible relay boards easy...our sales group will help you:

    • Select the right relay board for your application
    • Pay by credit card using your Visa, Mastercard, Discover, or American Express
    • Coordinate alternative payment methods (P.O., wire transfers, etc.)
    • Locate a distributor convenient to your region of the country


    Contact AMCI Sales today:

    telephone: 860-585-1254
    email: AMCI Sales

    AMCI makes buying PLC-based automation easy...our sales group will help you:

    • Select the right product for your application
    • Pay by credit card using your Visa, Mastercard, Discover, or American Express
    • Coordinate alternative payment methods (P.O., wire transfers, etc.)
    • Locate a distributor convenient to your region of the country

    credit cards accepted lineup.png
    Contact AMCI Sales today:

    860-585-1254

    CONTACT SALES

    Ordering Information

    AMCI's sales team takes the hassle out of placing your order. We'll advise on product selection, alternatives, lead times, and present you with point of purchase options. Call (860) 585-1254 or email AMCI sales today!
