8213 ControlLogix PLS Module

8213 ControlLogix PLS Module
  • Single-slot Programmable Limit Switch controller module
  • Provides up to 16 hi-speed limit switch I/O
  • Independent and group operating modes
  • Industry leading warranty and support.
  • 100% compatible with entire line of AMCI brushless resolver transducers.
  •  download-icon.jpg
     Downloads

    User Manuals

    8213 user manual

    Sample Programs

    8213 sample program
    8213 group mode sample program

    Configuration Files

    8213 eds files



    Description

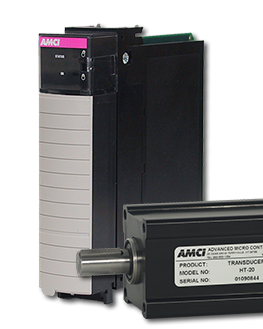

    8213 ContorlLogix Programmable Limit Switch

    The AMCI 8213 Programmable Limit Switch module for Allen-Bradley ControlLogix systems provides up to sixteen programmable high speed limit switch outputs and sixteen inputs that can be used via an external relay board. This one-slot module's backplane connection enables fast transfer of information between itself and the ControlLogix processor(s). This allows the 8213's many unique software features to become an integral part of your next packaging machine application.

    The 8213 module has two modes of operation, Independent Mode and Group Mode, both of which feature speed compensation (Auto Advance). Configured using the Independent Mode, each output is independent of the others and has a corresponding input that is ANDed with the output.

    Configured using the Group Mode, the outputs are combined into one of six groups. Each group is assigned an Operating Mode that condition how the outputs fire. This configuration replaces the ladder logic that you would typically have to write for such packaging functions as glue gun control or material sensing. In either mode, the outputs are updated every 100microseconds.

    Available Versions

    8213: Single-channel resolver-based programmable limit switch plug-in module for the Allen-Bradley ControlLogix.
    Price | $1,640/ea

    Note: Pricing is US Domestic only




    Save

    Consult the factory for availability

    Contact Sales

    Licensed by Allen-Bradley

    All AMCI plug-in module products for Allen-Bradley PLCs or PACs are approved for sale by Rockwell Automation and utilize licensed technology to ensure trouble-free performance.

    Advanced Micro Controls Inc. (AMCI) is a global Encompass member of the Rockwell Automation PartnerNetwork™ program. Through collaboration with Rockwell Automation, AMCI helps its customers improve time to market, lower total cost of ownership, better manage assets and minimize manufacturing business risk.

    Encompass Product Partner since 1992

    rockwell-automation-encompass-program-amci-logo.gifAMCI is a founding member of Rockwell Automation's Encompass Product Partner program.







    The Best PLC Integration Available

    AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!

    Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.

    Program Using Your Existing Software


    AMCI's products program using your PLC's native software - nothing new to learn or buy!

    Specifications

    Product Specifications

    AMCI Module8213
    PLC platform1756 ControlLogix
    Position sensorresolver
    Number of channels(1)
    Turns for full scale(1)
    Maximum full scale count4096
    Number of I/O
    D = Direct
    B = Backplane
    RB = Relay Board
    na
    16 out B / 16 in B
    16 our RB / 16 in RB
    Operating modes

    Independent
    Group
    Independent: outputs function as a cam switch
    Group: outputs combined by a single input
    Output update time100us
    Tachometer update time504ms or 120 ms
    Tachometer resolution1 RPM
    DC supply requirements615 mA max. @ 5Vdc
    Transducer compatibility H25 / HT-6 / HT-20 / HT-400 / HT-20-(x) / R11X-J10/7
    Cable requirementsCTL-X
    Required hardwarerelay boards, relays, and CRP-X cable
    Optional hardware6102 remote display
