7500 Series SLC500 SSI & LDT Interface Modules

7500 Series SLC500 SSI & LDT Interface Modules
  • Choose SSI or LDT interface
  • Direct interface to most sensors that output SSI
  • Onboard diagnostics monitor and report errors
  • Industry leading warranty and support
  • Licensed by Allen-Bradley for 100% compatibility with SLC500 PLC
  • Description

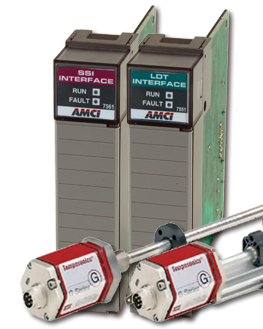

    7500 Series SSI/LDT Interface

    The single slot 7551 Linear Displacement Transducer interface supplies absolute position and velocity data to your programmable logic controller. This module is a direct interface between Balluff, and Temposonics magnetostrictive linear displacement transducers (LDT's) and the Allen-Bradley SLC 500. The 7551 offers programmable position data down to 0.001" resolution. This module also returns velocity data, based on the position scaling in counts per second, and transducer diagnostics.

    For customers seeking a direct interface to most sensors that output SSI data, we offer the 7561 module. The resolution of the 7561 is only limited by the resolution of the sensor that is used. Additional features include: position preset, count direction, and position scaling.

    Both Linear Displacement Transducer modules incorporate diagnostics that constantly monitor system integrity and report any errors to the PLC.

    Available Versions

    7551: Single-channel linear displacement transducer (LDT) interface plug-in module for the Allen-Bradley SLC500
    Price | $1,173/ea

    7561: Single-channel serial synchronous interface (SSI) interface plug-in module for the Allen-Bradley SLC500
    Price | $1,239/ea

    Note: Pricing is US Domestic only


    Save

    Consult the factory for availability

    Contact Sales

    Licensed By Allen-Bradley

    All AMCI plug-in module products for Allen-Bradley PLCs or PACs are approved for sale by Rockwell Automation and utilize licensed technology to ensure trouble-free performance.

    Advanced Micro Controls Inc. (AMCI) is a global Encompass member of the Rockwell Automation PartnerNetwork™ program. Through collaboration with Rockwell Automation, AMCI helps its customers improve time to market, lower total cost of ownership, better manage assets and minimize manufacturing business risk.

    Encompass Product Partner since 1992

    rockwell-automation-encompass-program-amci-logo.gifAMCI is a founding member of Rockwell Automation's Encompass Product Partner program.


    The Best PLC Integration Available

    AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!

    Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.

    Program Using Your Existing Software


    AMCI's products program using your PLC's native software - nothing new to learn or buy!

    Specifications

    Product Specifications

    AMCI Module75517561
    PLC platformSLC500SLC500
    Position sensorLDTSSI
    Maximum resolution0.001"/0.1mmtransducer dependent
    Number of channels(1) channel(1) channel
    Transducer CompatibilityBalluf / MTS / Ametek / Turck
    ------------------------------------
    above brands with start - stop or pwm digital outputs
    AMCI: DC25 SSI
    AMCI: ME15 SSI
    ------------------------------------
    Balluff / MTS / SICK / Stegmann / Allen-Bradley
    Output update time32ms/120ms selectableprogrammable 1-1000ms
    DC supply requirements215 mA @ 5Vdc215 mA @ 5Vdc
    Cable requirementssensor dependentsensor dependent
    Required hardwareexternal power supply for sensorexternal power supply for sensor
    Optional hardwarenana
