Now available with built-in safety functionality. For less than the cost of a separate controller, drive, and motor, AMCI’s SMD Series integrated stepper motors provide simple motion control at the right price, and are available with a wide variety of sizes, torque options, and features for any application.
The Package

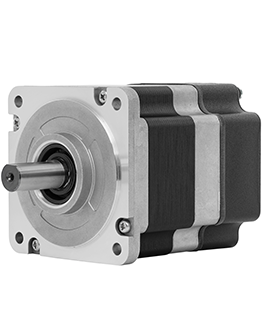

AMCI's SMD34L Networked Series is a size 34 3-in-1 Integrated Stepper Motor, Drive, and Controller package with network interface. It is a self-contained motion control product that is easy to install while delivering best in class performance at a competitive price.
AMCI's SMD34L Networked Series incorporates a Stepper Motor + Drive + Controller into a single product that interfaces to your PLC or PAC over the network (IO-Link). We've reduced total system costs and simplified installation because you only have to purchase one product versus a separate controller, drive, and motor. Plus, programming & configuration is streamlined because it uses standard commands through your PLC's software that are communicated over the network. No additional software is required, and you don't need to learn another programming language! AMCI's SMD34L Networked Series integrates with your PLC or PAC, saving you time and money.
Superior Durability
The SMD34L Networked Series unit comes with M12 connectors. The rugged industrial connectors provide superior durability for installations subject to high cable flex and/or wash down environments (food & beverage, industrial rinses, etc.).
Move Verification
AMCI's SMD34L Networked Series is available with an incremental or absolute encoder for move verification and closed-loop feedback.
Flexible
If you're seeking flexibility, AMCI's SMD34L Networked Series scores high marks. We've made it easy to add stepper axes wherever you need them on your IO-Link network, just plug in another SMD34L Networked Series and select your network with our simple web server - and you're ready to go.
SynchroStep Technology
AMCI’s SynchroStep technology enables coordinated motion control between the SMD34L and the PLC platform's motion axes (servo, VFD, etc). The SMD34L can be synchronized and geared to a master Virtual axis within the PLC, filling a gap that currently exists in the industry for small, inexpensive synchronized motion solution offerings. The SMD Series’ unique approach to PLC-integration simplifies configuration, programming, and coordinated motion.

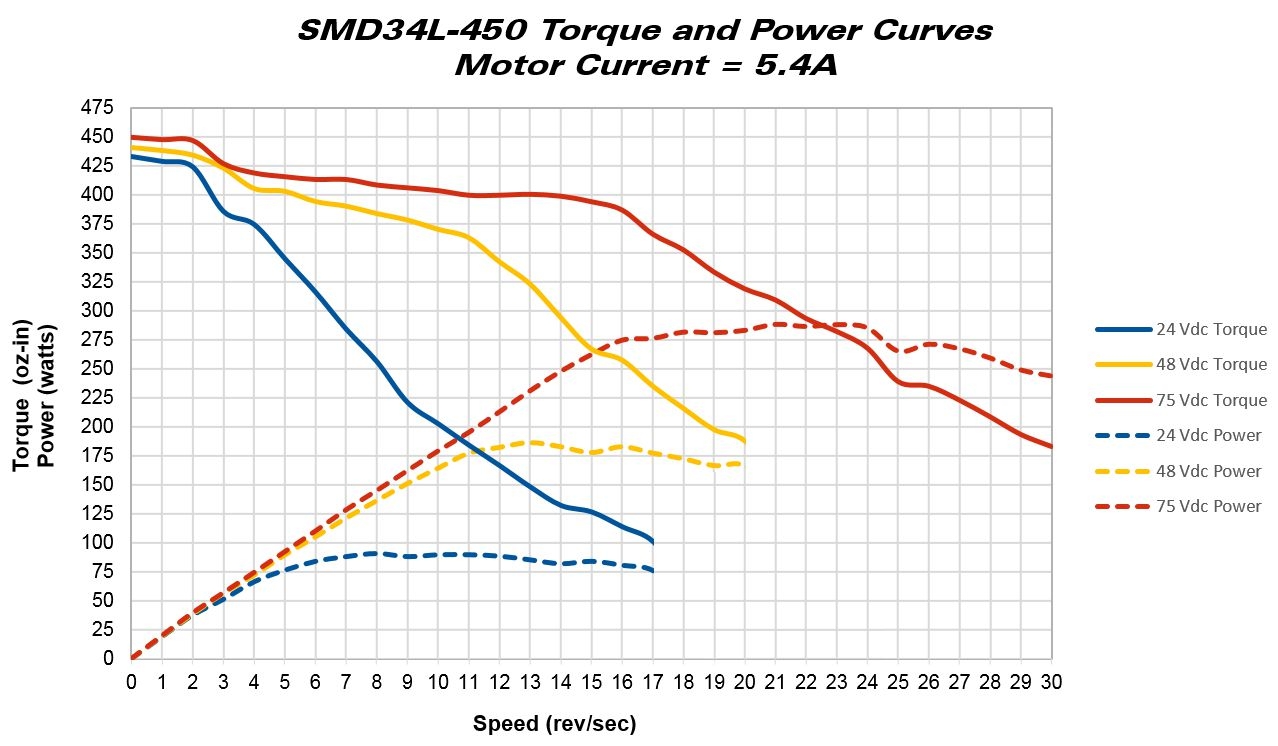

SMD34L-450

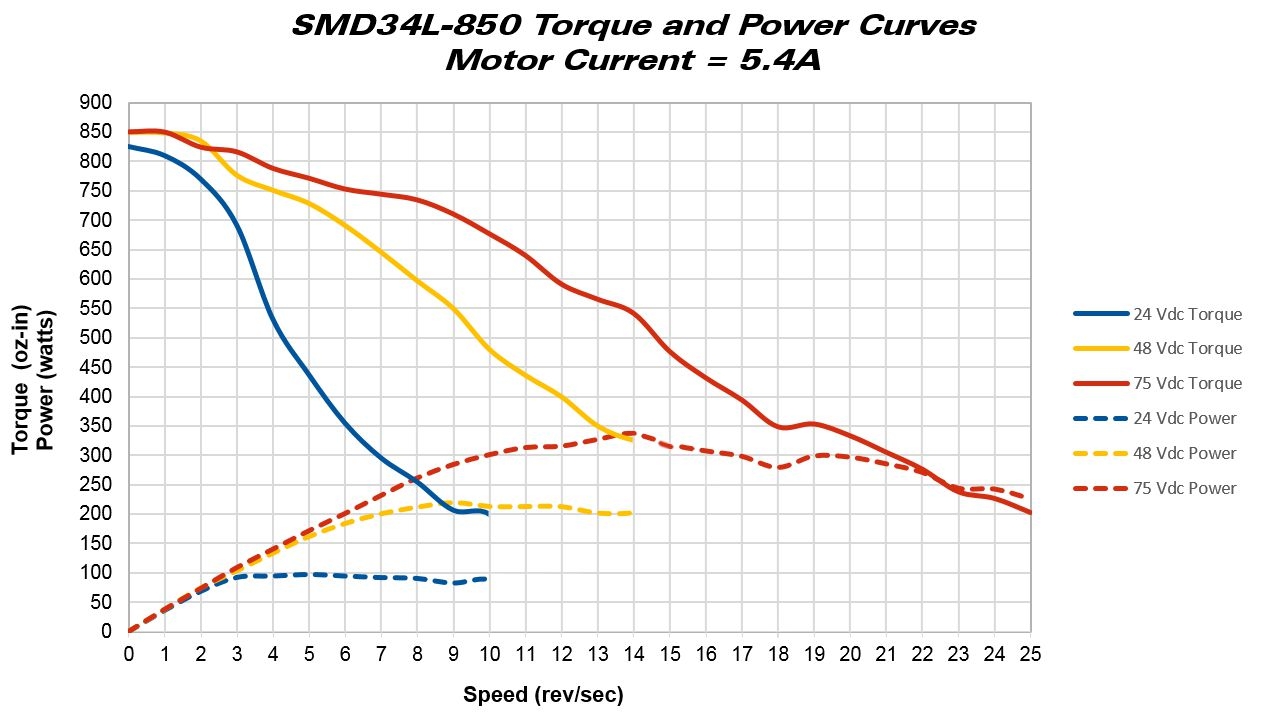

SMD34L-850

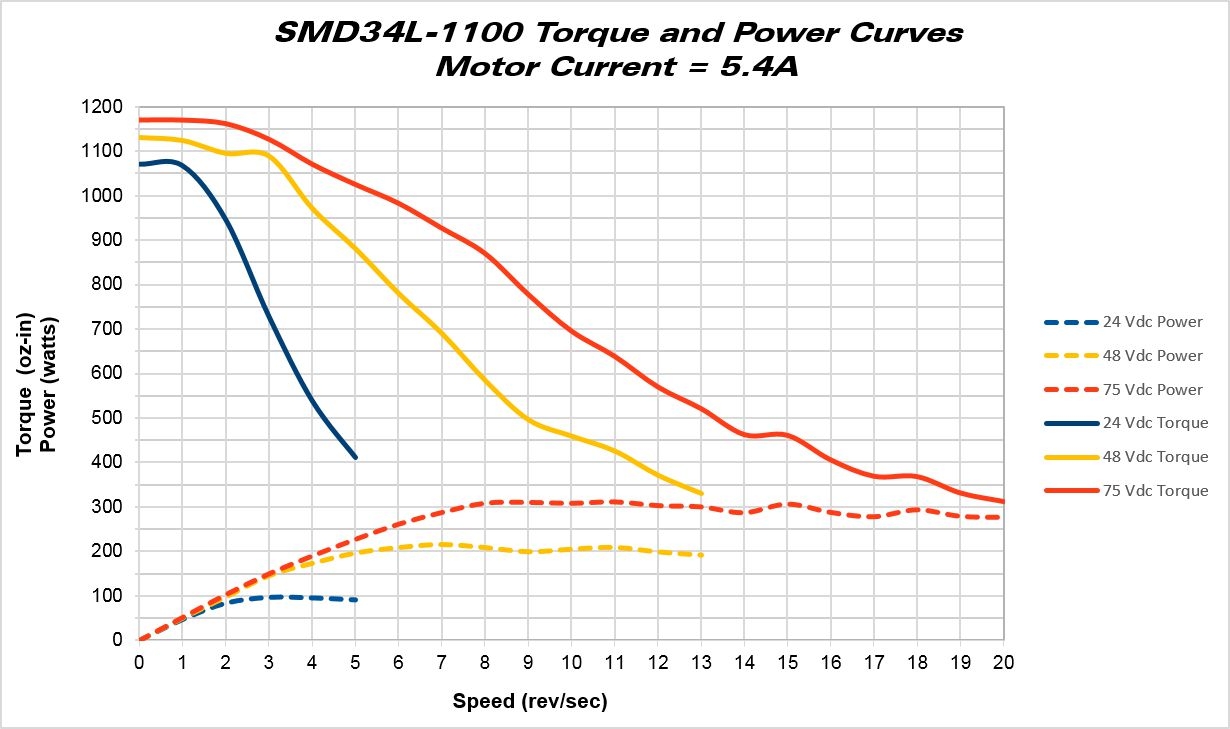

SMD34L-1100
Consult the factory for pricing & availability
Contact Sales
AMCI's SMD Series is available with a Stainless Steel Coating that provides superior, long-lasting protection against corrosion and wear in even the toughest industrial environments. AMCI's coating provides the best protection available from the harmful effects of ultraviolet rays, chemicals, oils, alkalis, food acids, water immersion, abrasion, and high-pressure washdowns.
Prized for its performance and appearance, AMCI's Stainless Steel IP67 Coating protects the SMD Series in applications including processing, packaging, food, pharmaceutical, equipment manufacture and other industries where strong requirements exist for preventing premature destruction of surfaces caused by exposure to water and other corrosive elements.
AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!
For over 10 years, AMCI has been engineering integrated motion technologies that fill a gap in the market like no other product. And our expertise with the leading PLC manufacturers (e.g. Allen-Bradley, Siemens, Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.
AMCI's SMD34L Networked Series is compatible with any PLC that supports IO-Link
Save
AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!
Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.
AMCI's products program using your PLC's native software - nothing new to learn or buy!

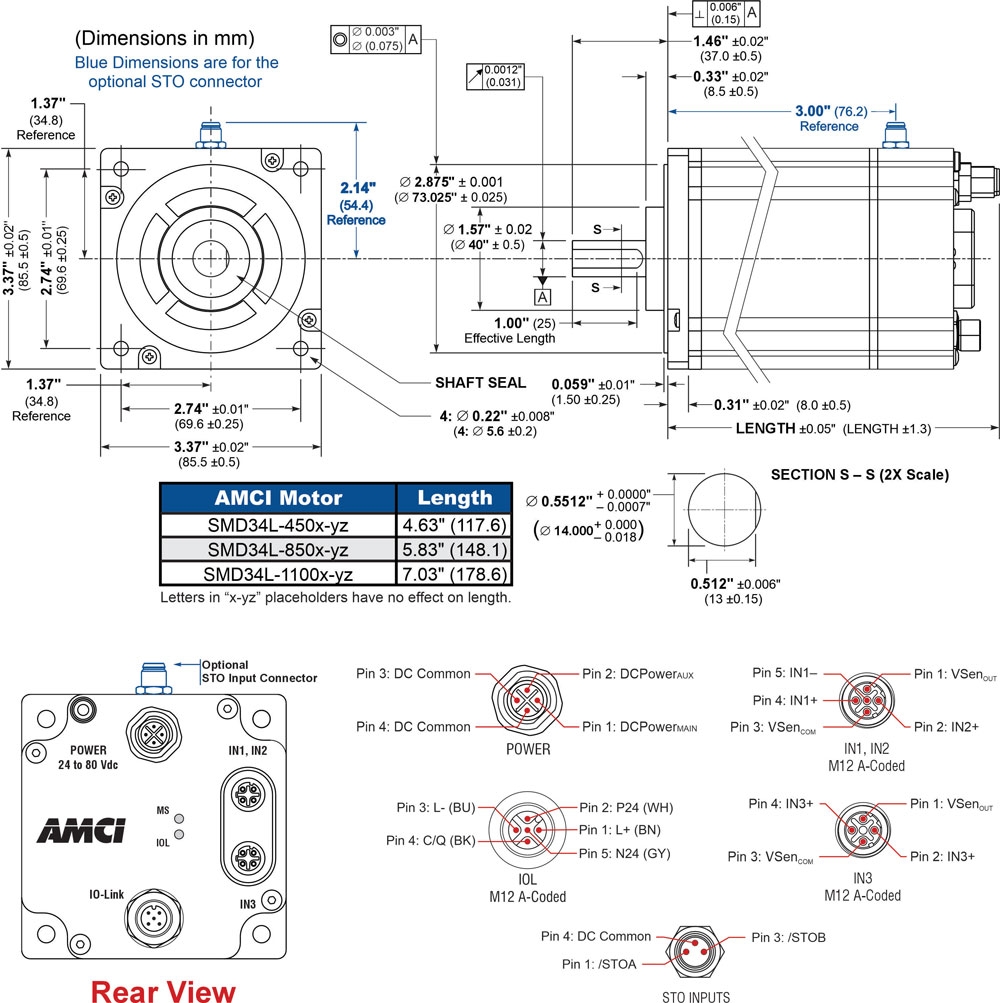

| SMD34L Networked Series | |
|---|---|
| Network Availability: | IO-Link |
| Steps per Revolution: | Programmable between 200 and 32,767 steps |
| Input voltage: | 24 to 80 Vdc |
| Motor current: | 5.4 A/phase |
| Aux-logic supply voltage: | 24 - 80 Vdc |
| Operating Temp: | -4°F to 122°F (-20°C to 50°C) |
| Storage Temp: | -40°F to 185°F (-40°C to 85°C) |
| SMD34L Networked Series | |
|---|---|
| Network Availability: | IO-Link |
| Steps per Revolution: | Programmable between 200 and 32,767 steps |
| Input voltage: | 24 to 80 Vdc |
| Motor current: | 5.4 A/phase |
| Aux-logic supply voltage: | 24 - 80 Vdc |
| Operating Temp: | -4°F to 122°F (-20°C to 50°C) |
| Storage Temp: | -40°F to 185°F (-40°C to 85°C) |
| General Purpose I/O | SMD34L Networked Series |
|---|---|
| Number/type | 3 inputs, programmable |
| Logic range | 5-24 Vdc |
| Function | Home Limit, Over Travel Limit, Capture Input, Manual Jog Stop, E-Stop, registration, index move |
| Input Specifications | -Off State Voltage: 0 to 1.5Vdc -On State Voltage: 3.3 to 27Vdc -Input Requires 10mA of current to operate |
| General Purpose I/O | SMD34L Networked Series |
|---|---|
| Number/type | 3 inputs, programmable |
| Logic range | 5-24 Vdc |
| Function | Home Limit, Over Travel Limit, Capture Input, Manual Jog Stop, E-Stop, registration, index move |
| Input Specifications | -Off State Voltage: 0 to 1.5Vdc -On State Voltage: 3.3 to 27Vdc -Input Requires 10mA of current to operate |
In this video, AMCI Application Engineer Justin Stewart walks you through the complete setup of an Integrated Stepper Motor — from mounting the hardware to programming the logic in Studio 5000.
Duration 17:02
AMCI's SMD Series' demo comes with free bench testing software, making it easy to evaluate the SMD Series' torque over speed performance in a compact package.
Contact AMCI to request your demo today!
AMCI makes buying PLC-based automation easy...our sales group will help you:
Contact AMCI Sales today:
860-585-1254
AMCI's sales team takes the hassle out of placing your order. We'll advise on product selection, alternatives, lead times, and present you with point of purchase options. Call (860) 585-1254 or email AMCI sales today!

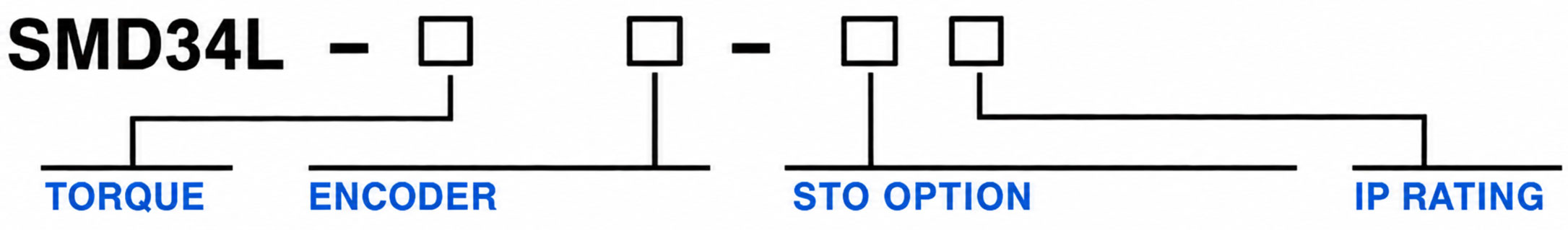

Create your part number by using the table below.
| Part Number Character | Size 34 Integrated Stepper Motor Package |
|---|---|
| Frame size: | 34 = NEMA size 34 |
| Network: | L = IO-Link |
| Holding torque: | 450 = 450 oz-in (3.18 N-m) 850 = 850 oz-in (6.0 N-m) 1100 = 1100 oz-in (7.7 N-m) |
| Encoder: | E = Incremental encoder A = Absolute multi-turn encoder |
| STO: | S12 = STO - Safe Torque Off |
| IP Rating: | S = Shaft seal; IP64 P = IP65/67 rating |
| Gearbox: | G = Gearbox blank = no gearbox |
| Gearbox Configuration: | C = Straight T = Right angle |
| Gearbox Ratio: | 5 = 5:1 Ratio 10 = 10:1 Ratio |
| Gearbox Type: | A = Standard Wittenstein C = Corrosion resistant Wittenstein |
| Part Number Character | Size 34 Integrated Stepper Motor Package |
|---|---|
| Frame size: | 34 = NEMA size 34 |
| Network: | L = IO-Link |
| Holding torque: | 450 = 450 oz-in (3.18 N-m) 850 = 850 oz-in (6.0 N-m) 1100 = 1100 oz-in (7.7 N-m) |
| Encoder: | E = Incremental encoder A = Absolute multi-turn encoder |
| STO: | S12 = STO - Safe Torque Off |
| IP Rating: | S = Shaft seal; IP64 P = IP65/67 rating |
| Gearbox: | G = Gearbox blank = no gearbox |
| Gearbox Configuration: | C = Straight T = Right angle |
| Gearbox Ratio: | 5 = 5:1 Ratio 10 = 10:1 Ratio |
| Gearbox Type: | A = Standard Wittenstein C = Corrosion resistant Wittenstein |
8 Page Brochure: We take the drive and motor out of the cabinet and put them right on the motor...
PDF Download
The basic difference between a traditional stepper and a servo-based system is the type of moto...
Read the Tutorial
Stepping motors can be viewed as electric motors without commutators. Typically, all windings i...
Read the Tutorial
PART NUMBER GUIDE
