5034 PointMax I/O PTO Module
Description

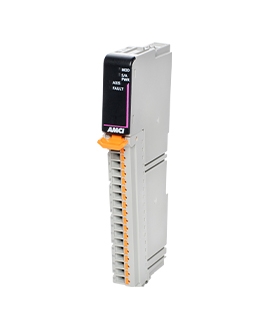

5034 PointMax I/O PTO Module
The 5034-PTO-AM is a pulse train output module developed for Rockwell Automation’s Point Max I/O platform. It delivers high-speed pulse train output to control stepper or servo drives, with selectable output formats: Step & Direction or CW/CCW.
The module includes encoder feedback (incremental and SSI), four programmable inputs, and a dedicated 24V auxiliary output. With available Add-On Profile, the 5034-PTO-AM simplifies integration into Rockwell-based systems.
Available Versions
5034-PTO-AM: Pulse Train Output module for the Allen-Bradley PointMax I/O
Consult the factory for pricing & availability
Contact Sales5034-PTO-AM Features

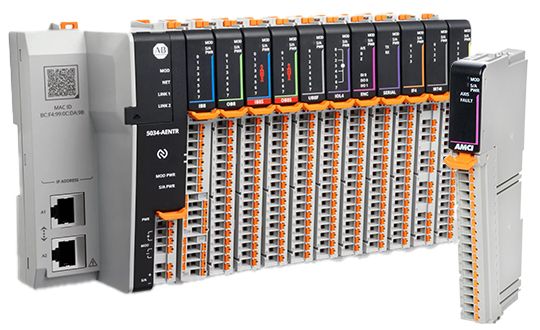

- Built for Rockwell’s Point Max I/O system
- High Speed Pulse Train Output
- Up to 1Mhz output frequency
- Incremental or absolute position feedback
- Outputs high-speed pulse trains (Step & Direction or CW/CCW)
- Output frequency: 1 Hz to 1 MHz
- Differential outputs for signal integrity and noise immunity
- Encoder feedback support:
- Incremental (quadrature)
- SSI absolute encoders
- Encoder Interface can function independently
- Four programmable inputs for external triggers or status monitoring
- 24V output (0.5–1 A) to power sensors or external devices
Licensed By Allen-Bradley
All AMCI plug-in module products for Allen-Bradley PLCs or PACs are approved for sale by Rockwell Automation and utilize licensed technology to ensure trouble-free performance.
Advanced Micro Controls Inc. (AMCI) is a Rockwell Automation Technology Partner within the PartnerNetwork™ program. Through this collaboration, AMCI helps customers accelerate time to market, reduce total cost of ownership, improve asset management, and reduce manufacturing risk.
A Trusted Rockwell Automation Partner
AMCI is a longtime member of Rockwell Automation’s Technology Partner Program, supporting integrated, high-performance solutions for industrial automation.
The Best PLC Integration Available
AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!
Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.
Program Using Your Existing Software
AMCI's products program using your PLC's native software - nothing new to learn or buy!
Specifications
I/O and Feedback Capabilities
| AMCI Module | 5034-PTO-AM |
|---|---|
| PLC platform | PointMax I/O |
| Number of channels | (1) channel |
| Encoder inputs | -Quadrature (X4 decode), up to 250 kHz -Differential input, 10 mA @ 5 Vdc -SSI absolute encoder interface |
| Inputs (x4) | -2x fast inputs (8–30 Vdc, 1µs response) -2x slow inputs (3.5–30 Vdc) -Input Current: 15 mA @ 24 Vdc -Assignable for general-purpose use, limits, capture, or registration |
I/O and Feedback Capabilities
| AMCI Module | 5034-PTO-AM |
|---|---|
| PLC platform | PointMax I/O |
| Number of channels | (1) channel |
| Encoder inputs | -Quadrature (X4 decode), up to 250 kHz -Differential input, 10 mA @ 5 Vdc -SSI absolute encoder interface |
| Inputs (x4) | -2x fast inputs (8–30 Vdc, 1µs response) -2x slow inputs (3.5–30 Vdc) -Input Current: 15 mA @ 24 Vdc -Assignable for general-purpose use, limits, capture, or registration |
Electrical
| AMCI Module | 5034-PTO-AM |
|---|---|
| Backplane current draw | 2W max |
| Pulse output | Differential, 5 Vdc, 20 mA max per output |
| Frequency range | 1 Hz to 1 MHz, programmable in 1 Hz steps |
| Power output | -24 Vdc, programmable -0.5 to 1 A -Protected -Can power encoders or other devices |
Electrical
| AMCI Module | 5034-PTO-AM |
|---|---|
| Backplane current draw | 2W max |
| Pulse output | Differential, 5 Vdc, 20 mA max per output |
| Frequency range | 1 Hz to 1 MHz, programmable in 1 Hz steps |
| Power output | -24 Vdc, programmable -0.5 to 1 A -Protected -Can power encoders or other devices |
Inputs
| AMCI Module | 5034-PTO-AM |
|---|---|
| Input type | Sinking |
| Fast inputs | 8–30 Vdc, 1µs |
| Slow inputs | 3.5–30 Vdc |
| Input Current | 15 mA @ 24 Vdc |
| Programmability | User-defined function per input |
Inputs
| AMCI Module | 5034-PTO-AM |
|---|---|
| Input type | Sinking |
| Fast inputs | 8–30 Vdc, 1µs |
| Slow inputs | 3.5–30 Vdc |
| Input Current | 15 mA @ 24 Vdc |
| Programmability | User-defined function per input |
Environmental
| AMCI Module | 5034-PTO-AM |
|---|---|
| Operating temperature | 32°F to 140°F (0°C to 60°C) |
| Storage temperature | -40°F to +185°F (-40°C to +85°C) |
| Relative humidity | 5% to 95%, non-condensing |
Environmental
| AMCI Module | 5034-PTO-AM |
|---|---|
| Operating temperature | 32°F to 140°F (0°C to 60°C) |
| Storage temperature | -40°F to +185°F (-40°C to +85°C) |
| Relative humidity | 5% to 95%, non-condensing |
Required equipment: 5034-RTB18 (screw clamp) or the 5034-RTB18S (spring clamp) mounting base assembly. These parts must be separately ordered from Rockwell Automation.
