5034 PointMax I/O PWM Module
Description

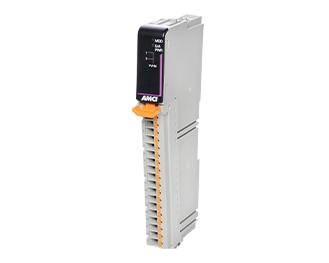

5034 PointMax I/O PWM Module
The 5034-PWM-AM is a two channel Pulse Width Modulation (PWM) single output module developed for Rockwell Automation’s Point Max I/O platform.
The module's programmable output frequency and duty cycle ensures its compatibility with a wide range of devices including, but not limited to dc motors, pumps, hydraulics, valves, and assorted electromechanical devices.
Available Versions
5034-PWM-AM: Pulse Train Output module for the Allen-Bradley PointMax I/O
Consult the factory for pricing & availability
Contact Sales5034-PWM-AM Features
- Built for Rockwell’s Point Max I/O system
- 2-channel PWM output
- Sourcing outputs
- 20Hz to 20 kHz maximum output frequency
- 0-100% programmable duty cycle (<10kHz)
- 5-95% programmable duty cycle (>10kHz)
- Licensed technology by Rockwell Automation
Licensed By Allen-Bradley
All AMCI plug-in module products for Allen-Bradley PLCs or PACs are approved for sale by Rockwell Automation and utilize licensed technology to ensure trouble-free performance.
Advanced Micro Controls Inc. (AMCI) is a Rockwell Automation Technology Partner within the PartnerNetwork™ program. Through this collaboration, AMCI helps customers accelerate time to market, reduce total cost of ownership, improve asset management, and reduce manufacturing risk.
A Trusted Rockwell Automation Partner
AMCI is a longtime member of Rockwell Automation’s Technology Partner Program, supporting integrated, high-performance solutions for industrial automation.
The Best PLC Integration Available
AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!
Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.
Program Using Your Existing Software
AMCI's products program using your PLC's native software - nothing new to learn or buy!
Specifications
Product Specifications
| AMCI Module | 5037-PWM-AM |
|---|---|
| PLC platform | PointMax I/O |
| Number of channels | (2) channels |
| Output type | Sourcing |
| Output voltage | 24Vdc |
| Output frequency range | 20Hz to 20kHz |
| Duty cycle range | 0% to 100% for frequencies less than 10kHz 5% to 95% for frequencies greater than 10kHz |
| DC supply requirements | 85mA maximum @ 5Vdc |
| Output signals | Pulse width modulated |
| Required equipment | 1734-TB (screw clamp) or the 1734-TBS (spring clamp) mounting base assembly. These parts must be separately ordered from Rockwell Automation. |
Product Specifications
AMCI Module5037-PWM-AM
PLC platformPointMax I/O
Number of channels(2) channels
Output typeSourcing
Output voltage24Vdc
Output frequency range20Hz to 20kHz
Duty cycle range0% to 100% for frequencies less than 10kHz
5% to 95% for frequencies greater than 10kHz
5% to 95% for frequencies greater than 10kHz
DC supply requirements85mA maximum @ 5Vdc
Output signalsPulse width modulated
Required equipment1734-TB (screw clamp) or the 1734-TBS (spring clamp) mounting base assembly. These parts must be separately ordered from Rockwell Automation.
AMCI makes buying PLC-based automation easy...our sales group will help you:
- Select the right product for your application
- Pay by credit card using your Visa, Mastercard, Discover, or American Express
- Coordinate alternative payment methods (P.O., wire transfers, etc.)
- Locate a distributor convenient to your region of the country
Contact AMCI Sales today:
860-585-1254
Ordering Information
AMCI's sales team takes the hassle out of placing your order. We'll advise on product selection, alternatives, lead times, and present you with point of purchase options. Call (860) 585-1254 or email AMCI sales today!
