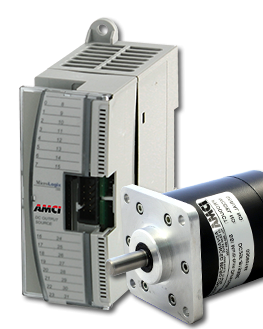

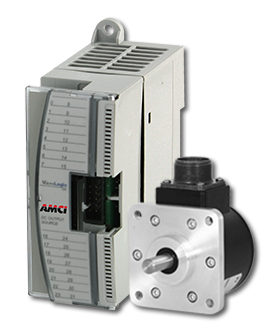

  • Interfaces SSI sensors to MicroLogix PLCs
  • Compatible w/ MicroLogix 1100, 1200 & 1400
  • Simplified programming via RSLogix500
  • Compatible w/ variety of SSI sensors: rotary & linear encoders, lasers, and barcode readers.
  • Allen-Bradley licensed technology for 100% guaranteed comptaibility w/ MicroLogix PLCs
  • download-icon.jpg
     Downloads

    7161 & 7162 user manual

    7161 & 7162 sample programs

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Description

    7161 & 7162 Micrologix SSI Interface Modules

    AMCI developed the 7160 series position sensing modules for applications requiring a direct interface to most sensors that output SSI data.

    The 1762 MicroLogix I/O SSI interface modules provide up to 32 bit resolution, with selectable data format of either binary or gray code. AMCI's 7160 series SSI interface modules can be used with most sensors that provide data in the form of an SSI output. This gives the 7161 & 7162 modules the ability to work in a wide range of rotary and linear sensing applications.

    Additional features include: position preset, count direction, position scaling, and a latch input (7161 only) that are used to capture the scaled position data. This module also incorporates fault diagnostics that constantly monitor system integrity and report any errors to the PLC.

    Available Versions

    7161: Single-channel SSI interface plug-in module for the Allen-Bradley MicroLogix
    Price | $504/ea

    7162: Two-channel SSI interface plug-in module for the Allen-Bradley MicroLogix
    Price | $663/ea

    Note: Pricing is US Domestic only


    Save

    Consult the factory for availability

    Contact Sales

    Licensed By Allen-Bradley

    All AMCI plug-in module products for Allen-Bradley PLCs or PACs are approved for sale by Rockwell Automation and utilize licensed technology to ensure trouble-free performance.

    Advanced Micro Controls Inc. (AMCI) is a global Encompass member of the Rockwell Automation PartnerNetwork™ program. Through collaboration with Rockwell Automation, AMCI helps its customers improve time to market, lower total cost of ownership, better manage assets and minimize manufacturing business risk.

    Encompass Product Partner since 1992

    rockwell-automation-encompass-program-amci-logo.gifAMCI is a founding member of Rockwell Automation's Encompass Product Partner program.


    The Best PLC Integration Available

    AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!

    Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.

    Program Using Your Existing Software


    AMCI's products program using your PLC's native software - nothing new to learn or buy!

    Specifications

    Product Specifications

    AMCI Module71617162
    PLC platform1762 MicroLogix I/O
    Position sensorSSI
    Maximum resolutionUp to 32 bits, transducer dependent
    Number of channels(1) channel(2) channels
    Transducer compatibilityAMCI: DC25 SSI | AMCI: ME15 SSI
    ---------------------------------------------------------------
    Balluff / MTS / SICK / Stegmann / Allen-Bradley
    Laser sensor compatibilityCompatible with most laser sensors; please contact Sales to verify.
    Optical Barcode position system compatibilityCompatible with most optical barcode positioning systems; please contact Sales to verify.
    Velocity update time24 or 160 msec., programmable
    DC supply requirements140 mA @ 5Vdc
    Cable requirementsuser supplied, sensor dependent
    Wiring connector10 terminal
    Required hardwareExternal power supply for sensor 24Vdc
    Optional hardwarena

    Accessories

    Rotary Encoders

    Rotary Encoders Learn More

    Cables

    Cables Learn More

    Interface Modules

    Interface Modules Learn More

    AMCI makes buying PLC-based automation easy...our sales group will help you:

    • Select the right product for your application
    • Pay by credit card using your Visa, Mastercard, Discover, or American Express
    • Coordinate alternative payment methods (P.O., wire transfers, etc.)
    • Locate a distributor convenient to your region of the country

    credit cards accepted lineup.png
    Contact AMCI Sales today:

    860-585-1254

    CONTACT SALES

    Ordering Information

    AMCI's sales team takes the hassle out of placing your order. We'll advise on product selection, alternatives, lead times, and present you with point of purchase options. Call (860) 585-1254 or email AMCI sales today!
