Remote Display
Description

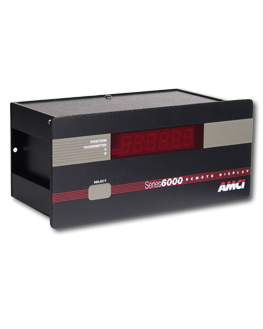

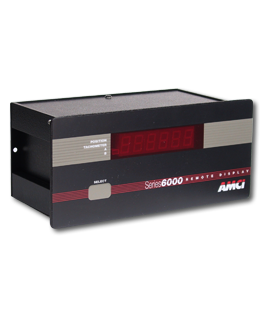

AMCI Series 6000 Remote Display
AMCI's Series 6000 Remote Displays are devices that allow position or velocity data to be shown at locations that are different from the AMCI module.
Typical applications mount the display on or near the machine to allow for quick visual references while calibrating the machines settings or for regulating productivity. Technicians can monitor position data in programmed scale factor units or oversee the velocity in RPM.
Besides added convenience, this time saving product also ensures that your equipment is operating at optimum levels of performance. Check our compatibility table below to see if your module is eligible for a Series 6000 Remote Display.
Available Types
6100 Series:
Price | starts at $645/ea
6200 Series:
Price | starts at $620/ea
Note: Pricing is US Domestic only
Consult the factory for availability
Contact SalesCompatibility Table
AMCI Series 6000 Remote Display Compatibility
| PLC Modules | Compatible Displays | Displayed Data |
|---|---|---|
| 1431-03 | 6100F or 6200F | position only |
| 1441-03 | 6100F or 6200F | position only |
| 1461-01 | 6100F or 6200F | position only |
| 1541-03 | 6100F or 6200F | position, tachometer, stop time, or stop angle, selectable only from PLC |
| 1731-03 | 6100F or 6200F | position only |
| 1761-01 | 6100F or 6200F | position only |
| 7451-01 | 6100F or 6200F | position only |
| 8213 | 6100F or 6200F | position or velocity, selectable from 6102 |
| 8513-01 | 6100F or 6200F | position or velocity, selectable from 6102 |
| PLC Modules | Compatible Displays | Displayed Data |
|---|---|---|
| 1431-03 | 6100F or 6200F | position only |
| 1441-03 | 6100F or 6200F | position only |
| 1461-01 | 6100F or 6200F | position only |
| 1541-03 | 6100F or 6200F | position, tachometer, stop time, or stop angle, selectable only from PLC |
| 1731-03 | 6100F or 6200F | position only |
| 1761-01 | 6100F or 6200F | position only |
| 7451-01 | 6100F or 6200F | position only |
| 8213 | 6100F or 6200F | position or velocity, selectable from 6102 |
| 8513-01 | 6100F or 6200F | position or velocity, selectable from 6102 |
| Stand Alone Controllers | Compatible Displays | Displayed Data |
|---|---|---|
| GN3B1-01A-01 (Genesis) GN3B1-01B-01 (Genesis) | 6102 | position or velocity, selectable from 6102 |
| iPCE-X-YD X=# of channels Y=# of output type | 6101F | position or velocity. For two channel units, position and velocity from both channels |
| iPLC-X-YD X=# of channels, 1, 2, or 4 Y=# of output type | 6101F | position or velocity. For multi-channel units, position or velocity from all channels |
| iPLC-2-YMDO iPLC-2-YNDO Y=output type | 6101F | position or velocity |
| Stand Alone Controllers | Compatible Displays | Displayed Data |
|---|---|---|
| GN3B1-01A-01 (Genesis) GN3B1-01B-01 (Genesis) | 6102 | position or velocity, selectable from 6102 |
| iPCE-X-YD X=# of channels Y=# of output type | 6101F | position or velocity. For two channel units, position and velocity from both channels |
| iPLC-X-YD X=# of channels, 1, 2, or 4 Y=# of output type | 6101F | position or velocity. For multi-channel units, position or velocity from all channels |
| iPLC-2-YMDO iPLC-2-YNDO Y=output type | 6101F | position or velocity |
Specifications
AMCI Series 6000 Remote Display
| Remote Display | Functionality |
|---|---|
| 6100F | displays position, BCD output in negative logic |
| 6200F | displays position, BCD output in negative logic, smaller face plate than 6100F |
| 6101F | displays position or velocity on 1 or 2 channels. no transducer fault message |
| 6102 | displays position or velocity. no transducer fault message. |
| Power requirements | all of the remote display units require 50mA at 110Vac. |
AMCI Series 6000 Remote Display
| Remote Display | Functionality |
|---|---|
| 6100F | displays position, BCD output in negative logic |
| 6200F | displays position, BCD output in negative logic, smaller face plate than 6100F |
| 6101F | displays position or velocity on 1 or 2 channels. no transducer fault message |
| 6102 | displays position or velocity. no transducer fault message. |
| Power requirements | all of the remote display units require 50mA at 110Vac. |
