SV160E2 Networked Series Integrated Servo Motor + Controller + Drive

  • Rotation Slide
  • Servo Motor + Drive + Indexer integrated for optimum performance
  • Dual-port networking offers offers DLR for EtherNet/IP & MRP for Profinet
  • Multi-protocol - EtherNet/IP, Modbus-TCP, & Profinet networks built-in
  • Programs using your host controller's software - nothing new to learn!
  • Space saving design simplifies installation with reduced wiring
  • IP50 rated
  • download-icon.jpg
     other Downloads

    User Manual & Drawings

    SV160E2 user manual

    SV160E2 2D DWG & 3D STP drawings

    Sample Programs

    SV160E2 RSLogix 500 & Studio 5000 sample programs

    SV160E2 Siemens TIA Portal sample programs

    Configuration Files

    SV160E2 generic eds files

    SV160E2 gsdml files

    Software

    EtherNet configuration software

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Description

    Integrated Servo Motor + Drive + Controller w/ Network Interface

    The Package

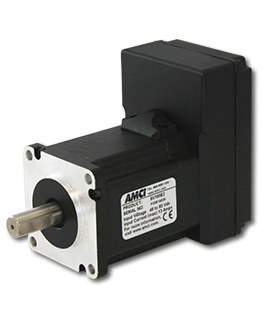

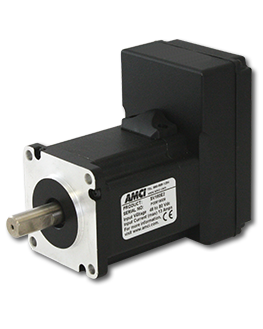

    AMCI's SV160E2 Integrated Servo is a 60mm sized 3-in-1 Integrated Servo Motor, Drive, and Controller package with network interface. It is a self-contained motion control product that is easy to install while delivering best in class performance at a competitive price.

    AMCI's SV160E2 Integrated Servo incorporates a Servo Motor + Drive + Controller into a single product that interfaces to your PLC or PAC over the network (EtherNet/IP, Modbus-TCP, and Profinet). We've reduced total system costs and simplified installation because you only have to purchase one product versus a separate controller, drive, and motor. Plus, programming & configuration is streamlined because it uses standard commands through your PLC's software that are communicated over the network. No additional software is required, and you don't need to learn another programming language! AMCI's SV160E2 Integrated Servo Motor integrates with your PLC or PAC, saving you time and money.

    Superior Durability

    All units come standard with rugged industrial M12 connectors to provide superior durability. For applications requiring an IP50 rating you can opt for an SV160E2 Networked Series unit with a shaft seal.

    Move Verification

    AMCI's SV160E2 Integrated Servo comes standard with an absolute multi-turn encoder for move verification and closed-loop feedback.

    Flexible

    If you're seeking flexibility, AMCI's SV160E2 Integrated Servo scores high marks. We've made it easy to add motion axes wherever you need them on your EtherNet/IP, Modbus-TCP, and/or Profinet network, just plug in another SV160E2 Integrated Servo and configure your motion axis over the network with our simple web server - done.

    Extras:

    E2-logo-50x50px.gifE2 Technology by AMCI is an innovative new multi-protocol approach to Ethernet distributed I/O.  Supported protocols include EtherNet/IP, Modbus-TCP, and PROFINET.

    ● Dual-Port Networking
    ● Multi-Protocol
    Web Server
    Native Software

    fault-tolerant-network-logo-icon.pngThe SV160E2 has a built-in Ethernet switch. The embedded switch provides a network connection for additional devices without increasing the nodes on your existing ethernet switch. Fault tolerant connections can detect a break in the network and redirect the network traffic maintaining communication and system up-time.  See the DLR video tutorial on the bottom of the page to learn more.

    synchrostep-logo.pngAMCI’s SynchroMotion technology enables coordinated motion control between the SV160E2 and Allen-Bradley motion axes (servo, VFD,  etc). The SV160E2 can be synchronized and geared to a master or virtual axis within the PLC, filling a gap that currently exists in the industry for small, inexpensive synchronized motion solution offerings. The SV160E2 Integrated Servo's unique approach to PLC-integration simplifies configuration, programming, and coordinated motion.

    Save

    Available Networked Versions

    SV160E2:
    Price | $1,375/ea

    Note: Pricing is US Domestic only


    Save

    Consult the factory for specific pricing and product availability

    Contact Sales

    SV160E2 Integrated Servo Features

    • Servo Motor + Drive + Indexer integrated for optimum performance
    • Built-in network interface
    • Dual-port networking offers offers DLR for EtherNet/IP & MRP for Profinet
    • Multi-protocol - EtherNet/IP, Modbus-TCP, & Profinet networks built-in
    • Programs using your host controller's software - nothing new to learn!
    • 60mm brushless DC servo motor
    • 0.5Nm continuous torque, 1.3Nm peak torque
    • Space saving design that simplifies installation with reduced wiring
    • M12 connectors for rigorous applications requiring IP50


    The Best PLC Integration Available

    AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!

    For over 10 years, AMCI has been engineering integrated motion technologies that fill a gap in the market like no other product. And our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.

    Compatible Networks


    AMCI's SV160E2 Networked Series is compatible with any PLC that supports these networks

    The Best PLC Integration Available

    AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!

    Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.

    Program Using Your Existing Software


    AMCI's products program using your PLC's native software - nothing new to learn or buy!

    Specifications

    General

    SV160E2 Integrated Servo
    Network Availability:EtherNet IP, Modbus TCP/IP, Profinet (all 3 networks built-in) w/Embedded Switch
    Motor Resolution:16,384 motor counts per turn
    Input voltage:48 to 80 Vdc
    Motor current:10.5 amps peak
    Operating Temp:-4°F to 122°F (-20°C to 50°C)
    Storage Temp:-40°F to 185°F (-40°C to 85°C)

    INPUTS

    General Purpose InputsSV160E2 Integrated Servo
    Number/type4 inputs, programmable
    Logic range12 Vdc - 24 Vdc
    FunctionHome Limit, Over Travel Limit, Capture Input, Manual Jog Stop, E-Stop, registration, index move

    Communication

    SV160E2 Integrated Servo
    InterfaceEthernet
    Bit rate10-100 Mbps
    ProtocolEthernet/IP, Modbus-TCP, & Profinet
    smd network logos

    Technical Drawings

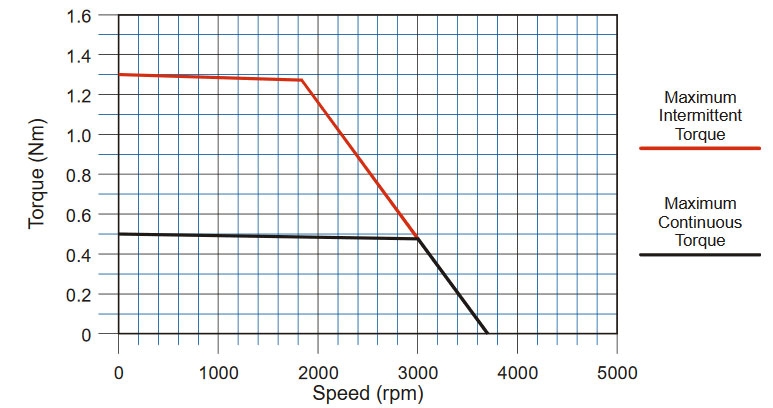

    Torque Curves: AMCI SV160E2 Integrated Servo

    Torque Curves: AMCI SV160E2 Integrated Servo

    Accessories

    Cables

    Cables Learn More

    Connectors

    Connectors Learn More

    AMCI makes buying PLC-based automation easy...our sales group will help you:

    • Select the right product for your application
    • Pay by credit card using your Visa, Mastercard, Discover, or American Express
    • Coordinate alternative payment methods (P.O., wire transfers, etc.)
    • Locate a distributor convenient to your region of the country

    credit cards accepted lineup.png
    Contact AMCI Sales today:

    860-585-1254

    CONTACT SALES

    Ordering Information

    AMCI's sales team takes the hassle out of placing your order. We'll advise on product selection, alternatives, lead times, and present you with point of purchase options. Call (860) 585-1254 or email AMCI sales today!
